Radiant Heat Where Needed
High Compression EPS Foam. Tough Aluminum Sheet Metal Laminate
InsulHeat is more efficient and responds faster than traditional in-slab radiant heating. Constructed from tough EPS foam with aluminum laminate our panels are water and mold resistant. We provide a cost effective solution for your radiant heating projects.
Versatile Applications
Over Slab
Over Subfloor
Over Walls
Over Ceiling
Delivered Factory Direct to Your Jobsite
Request a Free Sample
Get a free sample by mail.
Get Your Free Quote
Fill out the form below.
Break the Radiant In-Concrete Habit
THE NEW WAY: OVER SLAB
Far faster response. Higher efficiency. Cut slab installation costs. No under and edge insulation costs. No curing. No cracks. Flooring Goods Friendly. Save time and money.

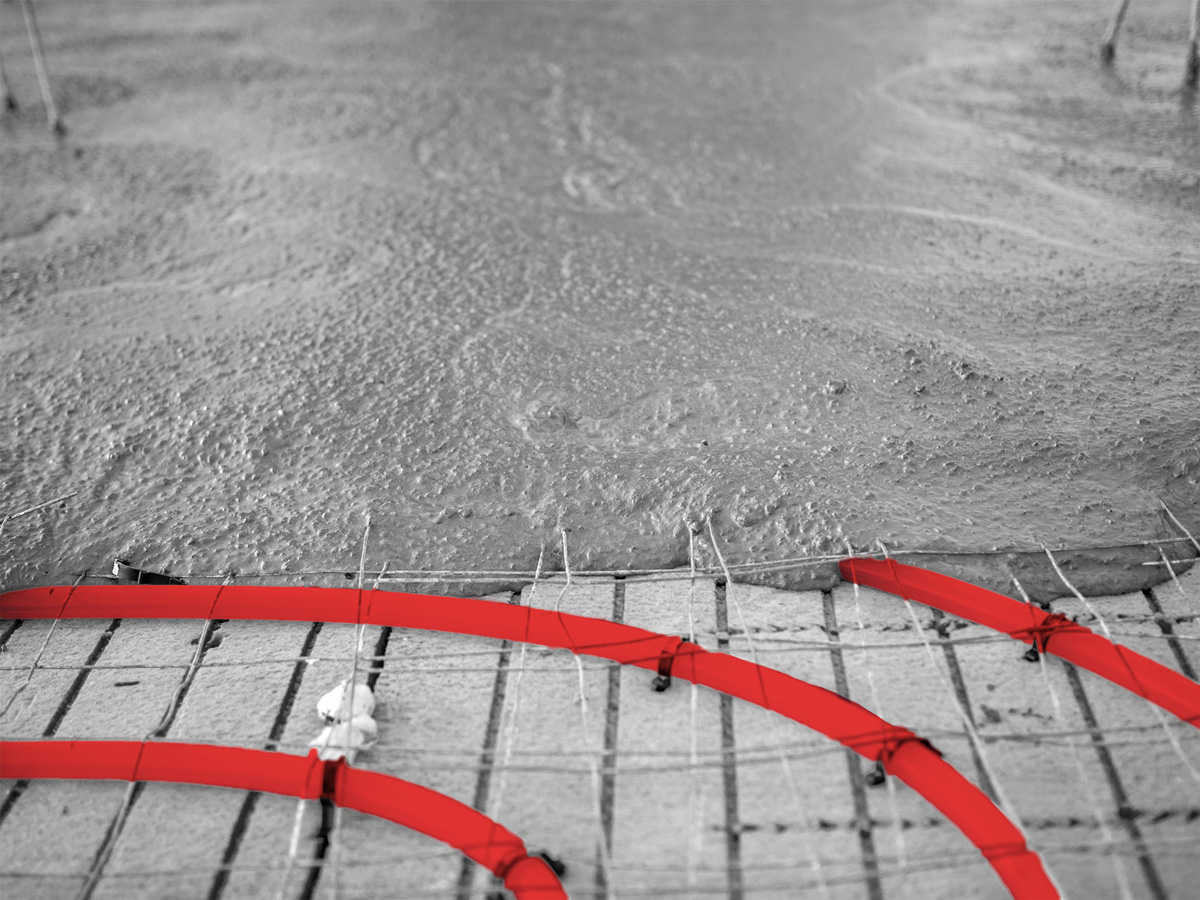

THE OLD WAY: IN-SLAB
Slower response. Slow efficiency. Expensive slab installation. Under and edge insulation costs. Requires curing time. Prone to cracks. Messy installation process. Labor intensive and time consuming.
The Modern Alternative to Radiant In-Concrete Slabs
Faster Response. Higher efficiency. Integrated Insulation. No specialty sub-contractor required. Cost effective. No drying or curing time. Fire rated. Enhanced Sound dampening. Moisture resistant. No squeaky floors. Flooring goods friendly. Flat, even surface.
Easy Three Step Installation
1. Install InsulHeat.
2. Lay PEX Tubing.

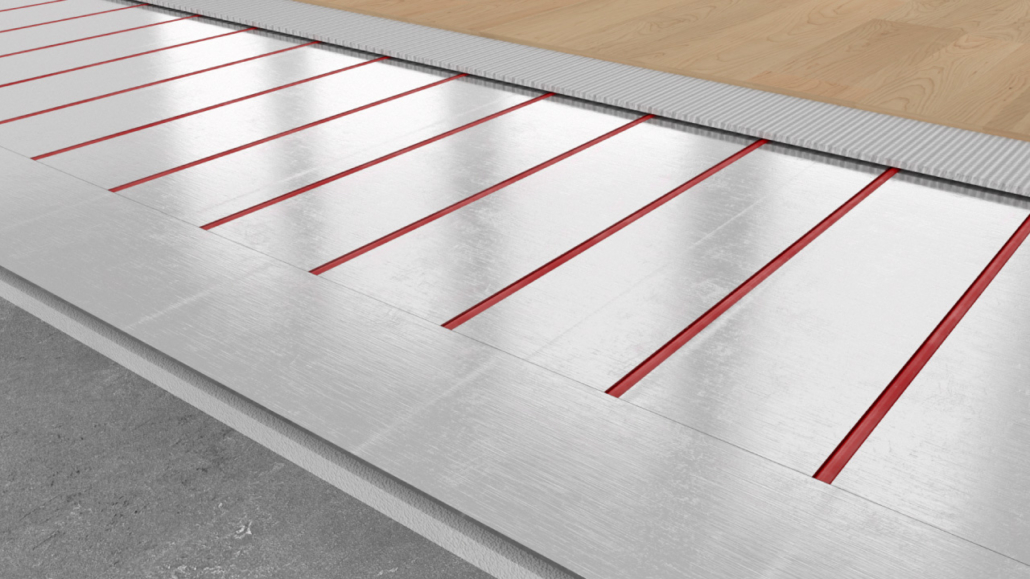

3. End Plates and Flooring
How to Buy InsulHeat
Submit your quote.
Request a free your online and our team will prepare a preliminary estimate.
Approve your estimate.
Review your estimate with our team, revise if necessary, and finalize approval.
Design Questionnaire
We will send you a Design Questionnaire to fill out and send to us.
Layout & Design
We will send your customized project Design & Layout plans for your review.
Pay & Ship
Once payment is submitted we will arrange shipment to your jobsite.
Get your free project quote. Delivered factory direct to your jobsite.
Fill out our estimate form and receive a free project quote factory direct to your jobsite.
Tough Stuff
High Compression Foam. Tough Aluminum Laminate
EPS is a lightweight, high-strength insulating material consisting of small hollow spherical balls that are expanded through a molding process to create a cost effective, highly efficient material used in hundreds of different applications.
- Tough, flat aluminum working surface ready for flooring goods
- Withstands jobsite abuse. A uniform, flat underlayment ready for finished flooring goods
- Compression: ASTM 1621 63 PSI
Lower Total Cost.
Do the math: Pst…Less to Do….
Current Radiant Slab Installation Practice: 12-25 psi/ 2” Foam Insulation Bottom/Sides + PEX clips and attachment + Concrete Gypsum/Concrete pour + apply finished floor assembly = Higher Installed Cost
InsulHeat Installation: 63 PSI InsulHeat assembly + snap in PEX – No Concrete Gypsum/Concrete Pour + Apply finished floor assembly = Lower Installed Cost
Over Under-Insulated Subfloors
Radiant heat will go downward just as easily as up unless there is sufficient insulation. Often radiant is installed over under-insulated existing floors or crawl spaces or just places that are tough to insulate. More Insulation is required. The best solution can be installing InsulHeat over the floor rather than insulating under the floor to avoid costly heat loss.
A Smart Alternative to Gypsum Cement Radiant Floors
Faster Response. Higher efficiency. Integrated Insulation. No specialty sub-contractor required. Cost effective. No drying or curing time. Fire rated. Enhanced Sound dampening. Moisture resistant. No squeaky floors. Flooring goods friendly: flat, even surface.

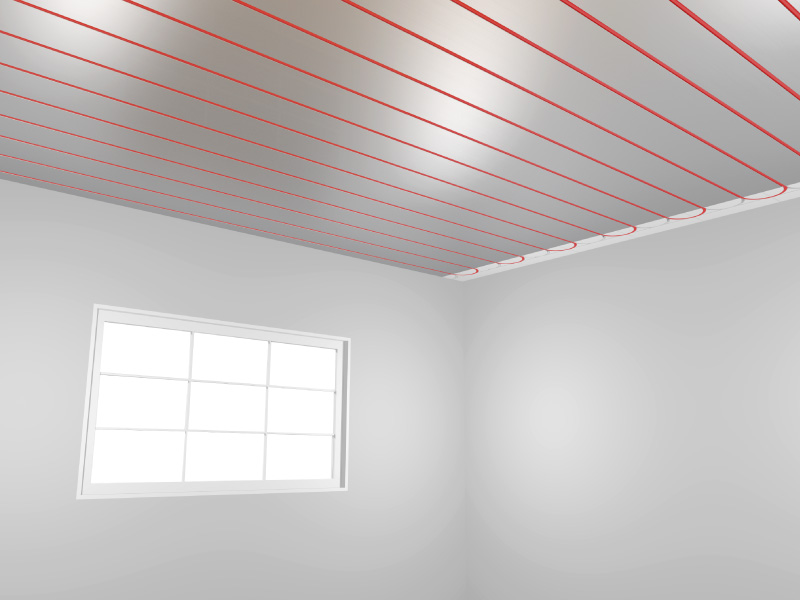

Warm Ceilings: Heat Down not Up
New Construction or Retrofit
Over new framing or glue to existing finished walls
- Radiant ceiling heating systems can be a great design tool to resolve design issues such as floor heights and transitions and compatibility with existing finished flooring goods.
- A radiant ceiling “sees” the floor, making the floors feel neutral via the gentle radiation from above. It also can be a savior in very high heat loss “trophy” rooms where the floor just can’t meet a very large load
- Radiant ceilings require far lower water temperature due to the lower surface resistance. Ideal product with condensing boilers and hydronic heat pump systems.

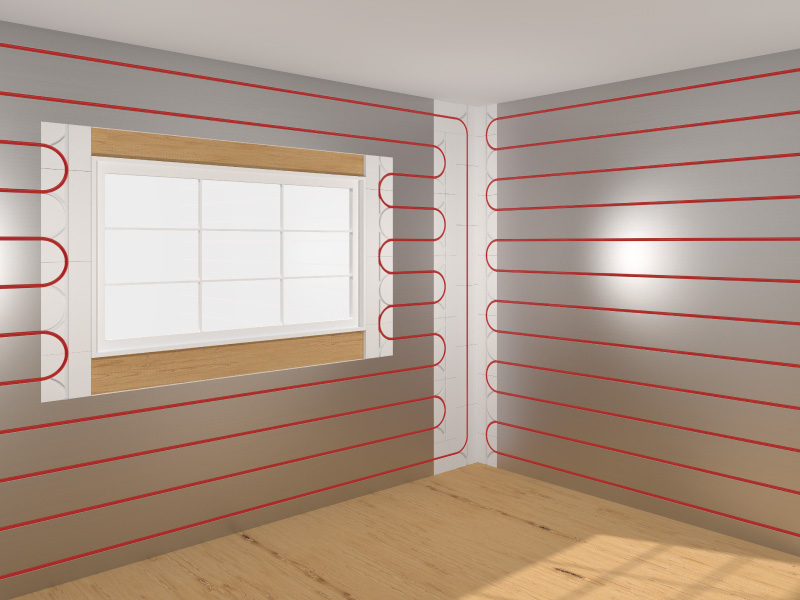

Warm Walls: Heat Out Not Back
Over New Walls or Existing Walls
Install over new framing or glue to existing finished walls. Have a height problem? Need supplemental heat for the big room? Want to replace unsightly hydronic baseboard or radiators? Wrap around heat for a shower stall?
The InsulHeat System: Aluminum Sheet Metal Laminate / High Compression EPS Foam Panels
| Straight Panel | 24″ x 48″ |
| Transition Board with Plate | 24″ x 48″ |
| Filler Board with Plate | 24″ x 48″ |
Technical Features: ICC Fire Rated compliant. Sustained R value 20 year guarantee. Water resistant. Mold resistant. Sound Dampening. Recyclable. Zero HFC.
Snap in Omega Groove. High Contact. ½” PEX.
Two Thickness Modes: 1″ & 2″
Load Matching Variable PEX Spacing
100% Aluminum Coverage
Fast Installation: Over concrete. Over subfloor. Over wall. Over ceiling.
InsulHeat. In the flow of your project with your crew. Simplify your project.
- Light weight. Easy Handling. Easy to cut. Route on site, as needed. Follow the layout plans provided.
- Cut with carbide blade on table or skill saw and heated wire tool
Flooring Goods Friendly
InsulHeat accommodates nearly all common finished floor goods including hardwood, marble, tile, ceramic, softwood, brick, linoleum, bamboo, LVP, and many more.
CAD Design & Layout
Each project is individually designed for panel locations, PEX tubing layout, manifolds and zoning locations. Optional heat loss calculations and full mechanical design services are available upon request.
InsulHeat accommodates nearly all common finished floor goods including hardwood, marble, tile, ceramic, softwood, brick, linoleum, bamboo, LVP, and many more.
Optional PEX and Manifold Supply
InsulHeat Performance
Why does InsulHeat perform so well?
- InsulHeat directs heat primarily in one direct, dramatically lowering unintended heat loss and increasing response time and efficiency.
- InsulHeat employs super conductive .020 aluminum sheet metal lamination over 100% of the floor surface while variable PEX spacing created design flexibility.
- InsulHeat omega shaped groove creates a tight bond between the PEX tubing and the aluminum.
- Higher efficiency results in lower supply water temperatures resulting in lower energy costs.
Fast Performance
Why wait for a slab to heat up? 3-8 times faster. With hydronic heating the lower the supply water temperature required to meet a given heating load – the more efficient a system.
Variable Spacing and Output system: Load Matching 8” and 16” Spacing
Use tighter PEX spacing where is the heat load is highest or wider PEX pacing for lower heat loss areas. Flexible design. Save materials and labor.
Rapid Response
Our conductive aluminum laminate allows heat to very rapidly flow across the surface. The dense EPS foam keeps heat from flowing in unproductive directions, allowing for maximum efficiency of radiant heat.
